Description

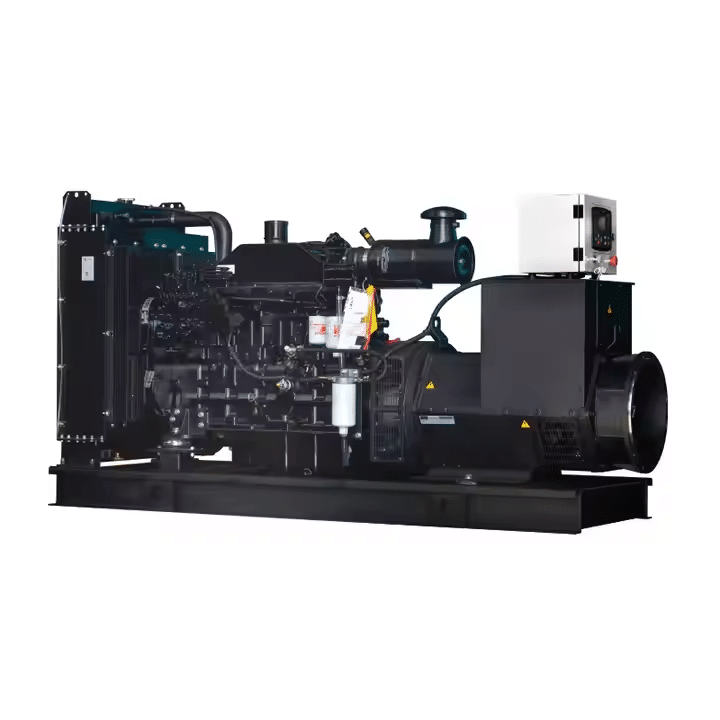

Powered by Cummins engine
| Engine Model | 6CTA8.3-G2 |
| Number of Cylinders | 6 cylinders inline |
| Cycle | 4 stroke |
| Aspiration | Turbocharged and after water-cooled |
| Bore×Stroke | 114mm x135mm |
| Displacement | 8.3L |
| Compression ratio | 17.3:1 |
| Prime Power/Speed | 163KW / 1500rpm |
| Standby Power/Speed | 180KW / 1500rpm |
| Speed Governor | Electrical |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total lubrication system capacity | 27.6L |
| Coolant capacity (engine only) | 12.3L |
| Fuel Consumption at 100% Load | 42L/h |
| Starter Motor | DC24V, |
| Alternator | DC24V |
Alternator Spec
Coupled with Stamford/Leroy Somer/ Marathon/Mecc-Alte/Wellpower alternator (3 years’ warranty)
| Alternator Model | Stamford/Leroy Somer/Marathon/Mecc-Alte/Wellpower |
| Standby power | 160KW/200KVA |
| Frequency/speed | 50HZ/1500rpm |
| Exciter type | Single bearing, Brushless, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Phase | Three phases |
| Control Panel | |
| Optional brands | Deespea/Smartgen/ComAp |
