Diesel generators, whether used as emergency power sources or regular power equipment, often produce noise that becomes a headache, especially in noise-sensitive environments such as residential areas, hospitals, and schools. Effectively reducing noise is key. This article shares a noise reduction solution for diesel generators, covering noise source analysis to specific operational details, helping you achieve “silent power generation.”

I. Understanding the Noise Source: Targeted Solutions for Cost Efficiency

The noise from diesel generators mainly consists of three parts:

  • Mechanical Noise: Caused by the movement of pistons and gear engagement within the engine, with frequencies concentrated between 500-2000Hz.
  • Exhaust Noise: Formed when exhaust gases are expelled at high speed through the exhaust pipe, which can reach over 105dB and is the primary source of high-frequency noise.
  • Fan Noise: Generated by the rotation of the cooling fan, common in open water tank models.

Key Tip: Use a sound level meter app (e.g., Sound Meter App) to measure the noise level at 1 meter from the generator. If the overall noise exceeds 85dB, prioritize addressing exhaust and mechanical vibration. If it’s below 85dB but high-frequency whistling is present, focus on optimizing the fan and housing resonance.

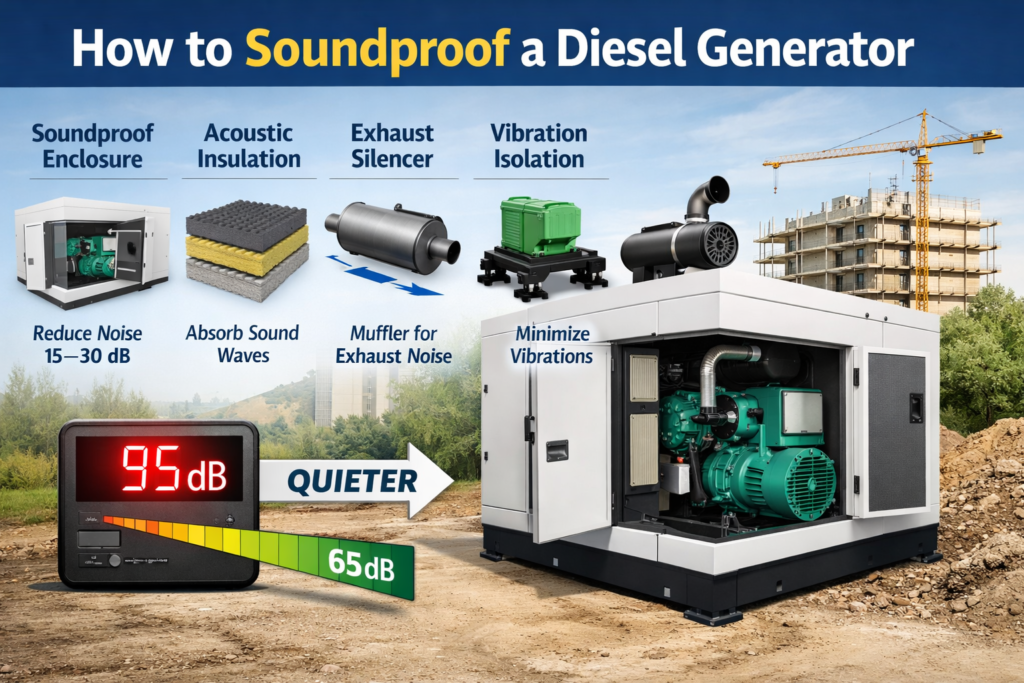

II. Four-Step Core Noise Reduction Solution

  1. **Vibration Isolation: Cutting Off the “Skeleton” of Noise Transmission  **
  • Install Vibration Isolators: Choose rubber pads (with a load capacity ≥ 1.2 times the generator’s weight) or spring isolators, installed between the generator base and the ground.
    • Operational Detail: Use a level to calibrate the base, ensuring the isolators are evenly stressed to prevent secondary vibration from tilting.
  • Flexible Connection Pipes: Install a stainless steel corrugated pipe (30-50cm in length) between the exhaust pipe and the muffler to reduce rigid transmission of vibration noise.
  1. **Muffler Exhaust Pipe: Suppressing the “Roar” of Exhaust Gases  **
  • Two-Stage Muffler Scheme: Add a resistive muffler (with a perforated plate and sound-absorbing cotton structure) to the rear end of the original muffler to reduce exhaust noise by 10-15dB.
    • Cost Comparison: Standard muffler costs around 200-500 RMB, while a custom resistive muffler costs approximately 800-1500 RMB, but the effect is significant.
  • Exhaust Pipe Wrapping: Use high-temperature-resistant fiberglass cloth (resistant to over 300°C) to wrap the exhaust pipe, with an outer layer of aluminum foil tape to reduce the vibration noise from metal wall heat dissipation.
  1. **Soundproof Enclosure: Building a Three-Dimensional Protective Net  **
  • **Material Selection:  **
    • Outer Layer: 1.5mm galvanized steel plate (corrosion-resistant)
    • Middle Layer: 50mm thick rock wool (density ≥ 80kg/m³) to absorb mid-to-low frequency noise
    • Inner Layer: Perforated aluminum plate (hole diameter 2-3mm, perforation rate 30%) to reflect high-frequency sound waves
  • **Design Points:  **
    • Place the air inlet and outlet diagonally to ensure smooth heat dissipation airflow (air velocity > 2m/s)
    • Install a soundproof louver (recommended Z-shaped blades, noise reduction of about 8-10dB)
    • Use magnetic sealing strips on maintenance doors to prevent sound leakage
  1. **Environmental Optimization: Low-Cost Overall Effect Improvement  **
  • Ground Sound Absorption: Lay rubber soundproof mats (thickness ≥ 10mm) around the generator to weaken ground reflection noise.
  • Barrier Method: If space allows, set up a 2.5m high sound-absorbing wall (filled with ceramsite concrete + perforated cement board) between the generator and sensitive areas.

III. Pitfall Guide: Details That Determine Success

  • **Balance Between Heat Dissipation and Soundproofing:  **
    • Reserve more than 20% ventilation redundancy within the soundproof enclosure. Add an axial fan if necessary (calculation formula: fan airflow ≥ 1.3×generator heat dissipation/(specific heat of air × temperature rise)).
    • Clean the air inlet filter of the soundproof enclosure every three months to prevent dust buildup and overheating.
  • **Material Fire Safety:  **
    • Avoid using ordinary polyurethane foam (flammable). Choose fire-retardant materials such as glass wool or rock wool with a fire rating of ≥ B1.
    • Maintain a distance of >15cm between the exhaust pipe insulation layer and the soundproof enclosure to prevent ignition from high temperatures.
  • **Regular Maintenance:  **
    • Check the vibration isolators for aging and cracks every month (rubber parts typically last 2-3 years).
    • Clean the muffler of internal carbon buildup every six months (using a high-pressure air gun for reverse blowing).

IV. Effect Verification and Cost Estimation

Case Study: A 75kW diesel generator in a residential community. Original noise level: 98dB. After implementing the above solution:

  • Noise level at 1 meter reduced to 72dB (meeting the “Environmental Quality Standard for Noise” GB3096-2008 for Class 2 areas during daytime)
  • Total modification cost: approximately 12,000 RMB, saving 60% compared to a professional silent generator.
