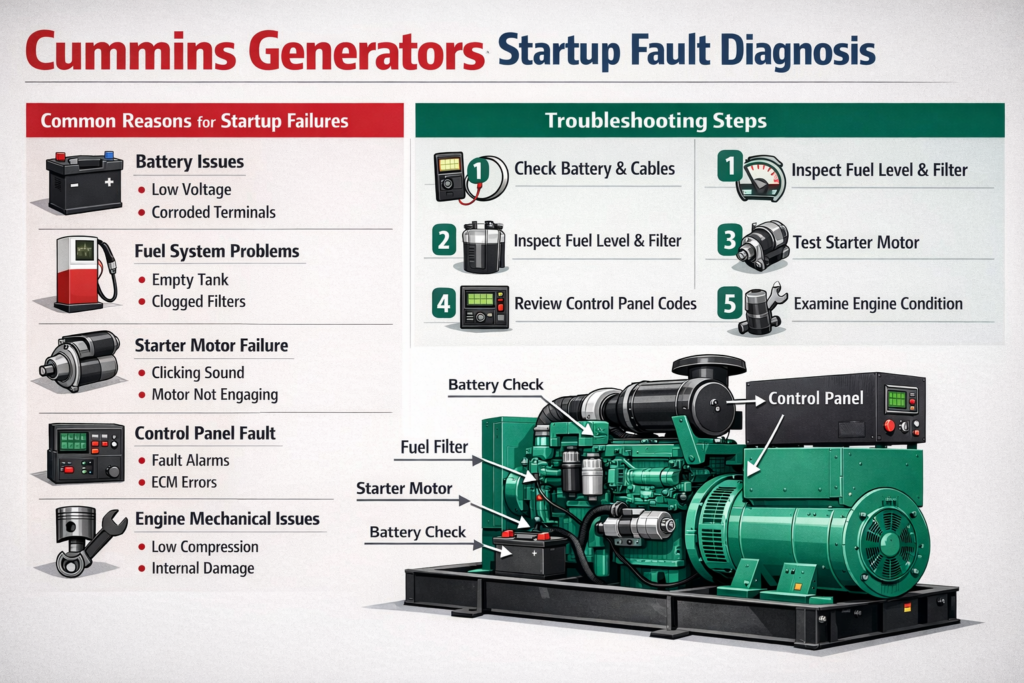

I. Rapid Fault Localization

When a Cummins diesel generators fails to start, it is recommended to follow a three-tier diagnostic process: fuel system – electrical system – mechanical system. A coastal power plant maintenance team successfully reduced the average troubleshooting time to 45 minutes using this method.

II. Key Inspection Points for Core Systems

Fuel Supply System (Approximately 52% of Faults)

  1. Fuel Quality Verification
    • Visually inspect diesel transparency: Normal diesel should be light yellow and free of suspended particles.
    • Measured Pour Point: The ambient temperature should be at least 5°C above the diesel pour point.
    • Case Study: In the winter of 2022, a data center in North China experienced fuel filter clogging due to using 0# diesel. The issue was resolved by switching to -10# diesel.
  2. Fuel Pipeline Inspection
    • Hand Pump Resistance Test: Normal stroke pressure should reach 0.3MPa.
    • Segmented Pressure Retention Test: The pressure drop should not exceed 0.05MPa within 10 minutes.
    • Pipeline Heating System: Must automatically activate when ambient temperature drops below 5°C.

Electrical Control System (Approximately 31% of Faults)

  1. Starter Battery Group Inspection
    • Multimeter Test: No-load voltage should be ≥24.8V (for a 24V system).
    • Load Test: A 1000CCA battery should maintain at least 9.6V for 30 seconds at -18°C.
    • Case Study: A hospital’s backup power system failed to start due to battery plate sulfation, which was resolved by replacing the battery.
  2. ECU Diagnostics
    • Use Insite Software to read fault codes.
    • Key check on CID-FMI codes, such as CID0036 indicating abnormal fuel pressure.
    • Case Study: A crankshaft position sensor failure prevented the ECU from detecting the engine speed signal.

Mechanical System Inspection (Approximately 17% of Faults)

  1. Cylinder Pressure Test
    • Use a specialized pressure gauge for each cylinder.
    • Standard Values:
      • New engine: ≥25 bar
      • Old engine: ≥18 bar
    • If the pressure difference exceeds 15%, check valve clearance or piston rings.
  2. Valve Timing Verification
    • Use a timing light to check the fuel injection advance angle.
    • ISF Series Standard Value: 8-12° crankshaft angle.
    • Case Study: A logistics center experienced startup failure due to timing gear misalignment by two teeth.

III. Emergency Startup Solutions

If immediate repairs are not feasible, consider the following:

  • Cold Weather Conditions: Use ether-assisted start (not exceeding 3% of the fuel volume).
  • Intake Preheating: Use a hot air gun to heat the intake pipe to 40°C.
  • Jump-Start Method: Parallel battery group startup (voltage difference must be <0.5V).

IV. Preventive Maintenance Recommendations

Establish a Three-Level Maintenance System

  • Daily Inspection: Fuel level, instrument readings.
  • Monthly Inspection: Battery specific gravity, belt tension.
  • Annual Inspection: Fuel injector atomization test (standard: 0.25mm uniform particles).

Intelligent Fuel Line Monitoring

  • Install an online particle counter (ISO 4406 standard).
  • Trigger an alert when contamination level reaches 18/16/13.

Smart Battery Management System

  • Configure an adaptive charging module to adjust float voltage based on temperature (e.g., 2.27V per cell @ 25°C).

This diagnostic approach has been proven effective, reducing the Mean Time to Repair (MTTR) for Cummins generator startup failures to within 90 minutes, a 60% improvement over traditional methods. It is recommended that maintenance teams be equipped with digital pressure sensors, infrared thermal imaging devices, and use big data analytics to develop predictive maintenance models.
