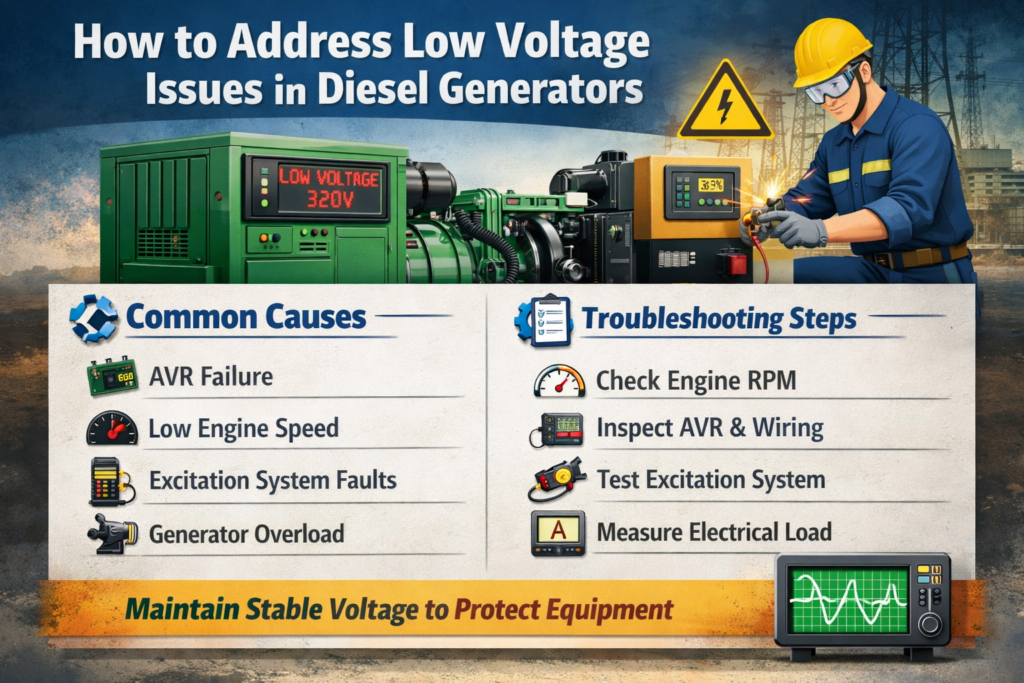

Diesel generator voltage instability or low voltage is a common operational fault that directly affects the quality of power supply. As an electrical engineer with 15 years of experience in the industry, I have handled hundreds of similar cases. Below, I will share troubleshooting ideas and solutions based on practical experience to avoid textbook-style theoretical explanations.
1. First, rule out “simple mistakes”—don’t rush to disassemble the machine
Once, I received an urgent report from a factory that the generator voltage suddenly dropped to 320V. Upon arrival, I found that the operator had adjusted the speed knob to 48Hz in order to “save fuel.” This kind of human error accounts for more than 30% of all failures. I recommend performing the “three checks” first:
- Check the frequency meter to ensure it is stable at 50/60Hz (±0.5Hz tolerance).
- Use a multimeter to directly measure terminal voltage to rule out instrument malfunction.
- Check if the emergency stop button has been accidentally triggered (a similar incident at a hospital led to a power outage).
2. Fuel system can harbor hidden issues
I once handled a case at a hotel where the generator’s voltage dropped continuously under load after being replaced with an AVR. The issue was finally traced to a barely visible crack at the fuel pipe junction, causing insufficient fuel pressure. Key points to check include:
- A clogged diesel filter can cause a “full then sputter” phenomenon (normal on no-load, fuel insufficient under load).
- In winter temperatures below -10°C, use lower-grade diesel, as wax crystallization can affect combustion efficiency.
- The injector nozzle carbon buildup requires ultrasonic cleaning; regular wiping won’t clear the tiny nozzle blockages.
3. Excitation system diagnosis requires a “look, smell, ask, feel” approach
On one occasion, a marine generator AVR kept burning out. Measurements showed the rotor winding’s insulation resistance was only 0.2MΩ. I recommend a step-by-step testing method:
- Measure the excitation winding resistance in a shutdown state (normal value: 0.5-10Ω, depending on the model).
- Perform dynamic testing: disconnect the AVR output wire, connect an external 24V DC power supply, and check if the voltage can be established.
- If the carbon brush contact surface shows “crescent marks,” replace it immediately. A chemical plant avoided an overload fire due to this.
4. Environmental factors often overlooked
A backup generator at a data center frequently triggered low voltage alarms during the rainy season, and the humidity in the server room reached 95%. The root cause was found to be the moisture in the winding. Be aware of these factors:
- For every 1,000 meters above sea level, the output power decreases by about 10%.
- If the environment temperature exceeds 40°C, enhance heat dissipation (a desert oil field reduced its failure rate by 70% after adding air ducts).
- In dusty environments, clean the armature surface weekly to prevent conductive dust from causing local short circuits.
5. Special case handling records
In 2021, a backup generator at a hydropower station experienced periodic voltage fluctuations. Frequency spectrum analysis revealed a 0.15mm eccentricity in the rotor. This type of hidden mechanical fault requires:
- Infrared thermal imaging to check bearing temperature distribution.
- Vibration analysis tools to capture characteristic frequencies.
- Dynamic balancing calibration (after calibration, the voltage fluctuation reduced from ±5% to ±1%).
