Diesel generators rely on a properly lubricated engine to operate reliably. One of the most common maintenance questions from operators and technicians is: how much oil does a diesel generator engine actually require?
The answer is not the same for every generator. Engine oil capacity depends on the engine size, cylinder configuration, and manufacturer design. Understanding the correct oil capacity helps prevent engine wear, overheating, and unnecessary downtime.
In this article, we will explain typical oil capacities, what factors influence them, and how to check the correct oil level in a diesel generator engine.
Understanding Oil Capacity in Diesel Generator Engines
Oil capacity refers to the total amount of lubricating oil contained in the engine’s lubrication system. This includes:
- The oil stored in the oil pan
- Oil circulating through internal passages
- Oil inside the filter and lubrication components
When manufacturers list engine oil capacity, they normally refer to the total system capacity after an oil and filter change.
Because diesel generator engines vary widely in size, their oil capacity can range from only a few liters to well over one hundred liters in large industrial units.

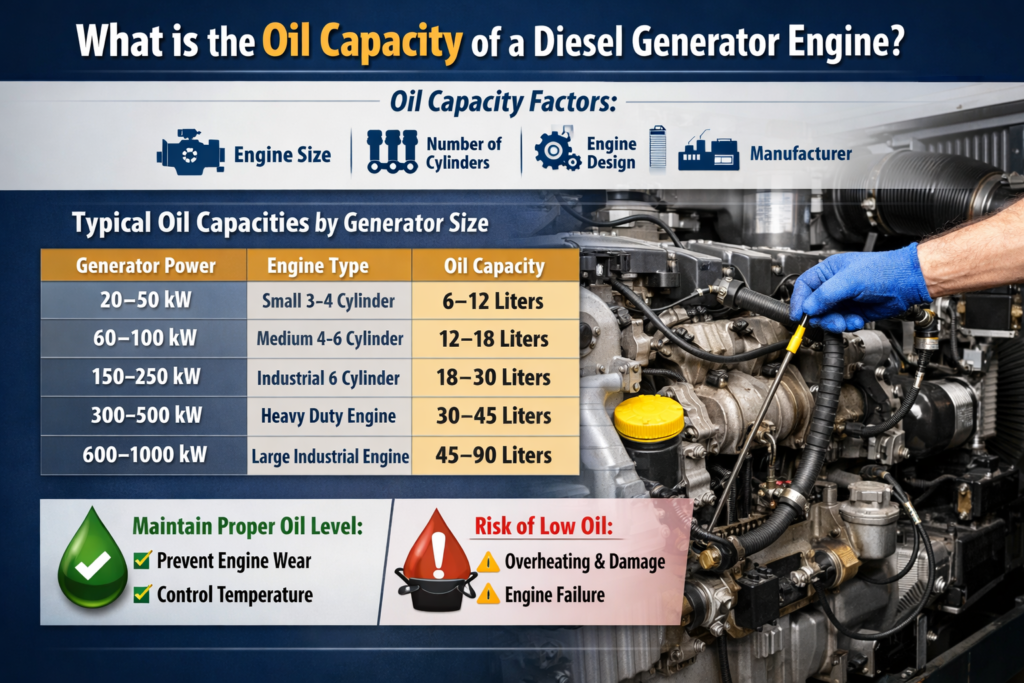

Typical Oil Capacity by Generator Size
Although every engine model has its own specifications, the following ranges provide a general reference for common diesel generator sizes.
| Generator Power | Typical Engine Type | Approximate Oil Capacity |
|---|---|---|
| 20–50 kW | Small 3–4 cylinder engine | 6–12 liters |
| 60–100 kW | Medium 4–6 cylinder engine | 12–18 liters |
| 150–250 kW | Industrial 6 cylinder engine | 18–30 liters |
| 300–500 kW | Heavy-duty diesel engine | 30–45 liters |
| 600–1000 kW | Large industrial engine | 45–90 liters |
For example, a 200kW diesel generator usually requires around 22–28 liters of engine oil, depending on the engine manufacturer.
Large generators used in power plants or heavy industrial facilities may require significantly more oil due to larger displacement and extended lubrication systems.
Oil Capacity of Popular Diesel Generator Engines
Different engine brands use different lubrication system designs. Below are some examples of typical oil capacities found in commonly used generator engines.
Cummins Generator Engines
Cummins engines are widely used in standby and industrial generator systems.
Typical oil capacities include:
- Cummins 4BTA3.9 – around 10.9 liters
- Cummins 6BT5.9 – around 16 liters
- Cummins QSB7 – around 23 liters
- Cummins KTA19 – approximately 45–50 liters
These engines are known for reliable lubrication systems and long service intervals.
Perkins Generator Engines
Perkins engines are common in industrial and commercial generators.
Typical oil capacities include:
- Perkins 1103 series – about 8–9 liters
- Perkins 1106 series – about 15–17 liters
- Perkins 1506 series – about 26–28 liters
Larger Perkins engines used in high-power generator sets can require over 150 liters of oil.
Weichai Generator Engines
Weichai engines are widely used in construction projects, industrial facilities, and export generator sets.
Typical capacities include:
- Weichai WP4 – around 10 liters
- Weichai WP6 – around 16–18 liters
- Weichai WP10 – around 26–28 liters
- Weichai WP12 – around 30–35 liters
Actual capacity may vary depending on the generator configuration and oil filter size.
Why Correct Oil Capacity Matters
Maintaining the correct oil level is one of the most important parts of diesel generator maintenance.
Proper Engine Lubrication
Engine oil creates a protective film between moving components such as pistons, bearings, and crankshafts. Too little oil increases friction and accelerates wear.
Temperature Control
Oil helps remove heat from engine components. Low oil levels can lead to excessive engine temperatures.
Preventing Mechanical Damage
Running a generator with insufficient oil can cause serious internal damage and may lead to engine failure.
Efficient Engine Operation
A properly lubricated engine runs smoother and maintains stable performance during heavy load operation.
How to Check Diesel Generator Engine Oil Level
Checking the oil level should be part of the generator’s routine inspection.
A typical procedure includes the following steps:
- Shut down the generator and allow the engine to cool.
- Locate the engine oil dipstick.
- Remove the dipstick and wipe it clean.
- Insert it fully back into the tube.
- Pull it out again and check the oil level.
The oil level should remain between the MIN and MAX marks on the dipstick.
If oil needs to be added, do so gradually and avoid overfilling.
Recommended Oil Change Intervals
Oil capacity also influences how often the oil should be replaced.
Typical oil change intervals are:
| Generator Application | Recommended Interval |
|---|---|
| Standby generator | 200–250 hours |
| Prime power generator | 150–200 hours |
| Continuous industrial generator | 100–150 hours |
Operating conditions such as high temperature, heavy loads, or dusty environments may require more frequent oil changes.
Choosing the Right Oil for a Diesel Generator
Selecting the correct engine oil is just as important as maintaining the correct oil capacity.
Most industrial diesel generators use 15W-40 heavy-duty diesel engine oil that meets standards such as:
- API CI-4
- API CJ-4
- API CK-4
Always follow the engine manufacturer’s recommendations and replace the oil filter during each oil change.
Conclusion
The oil capacity of a diesel generator engine depends largely on the engine size and manufacturer. Small generators may only require 6 to 12 liters, while large industrial generators can require over 80 liters of oil.
To keep a generator running reliably, operators should always follow the engine manufacturer’s specifications, regularly check the oil level, and perform oil changes at recommended service intervals.
Proper lubrication remains one of the simplest and most effective ways to extend the service life of a diesel generator engine.
Frequently Asked Questions
How much oil does a 200kW diesel generator use?
Most 200kW diesel generator engines require approximately 22–28 liters of oil, depending on the engine model.
Can too much oil damage a generator engine?
Yes. Overfilling can cause oil foaming, increased crankcase pressure, and potential seal damage.
How often should generator oil be checked?
It is recommended to check the oil level before each operation or daily for generators used regularly.
Is 15W-40 oil suitable for diesel generators?
Yes. 15W-40 is one of the most commonly used oils for industrial diesel engines.
What happens if a diesel generator runs with low engine oil?
Running a generator with low engine oil can cause poor lubrication, increased friction, overheating, and severe internal engine damage. In extreme cases, it may lead to engine seizure.
Does changing the oil filter affect oil capacity?
Yes. When the oil filter is replaced, additional oil is required to fill the new filter. This slightly increases the total oil capacity compared to draining the oil alone.
What type of engine oil is best for diesel generators?
Heavy-duty diesel engine oils that meet API CI-4, CJ-4, or CK-4 standards are generally recommended. The most common viscosity used in generator engines is 15W-40.
Can different brands of diesel engine oil be mixed?
Mixing oils from different brands or specifications is not recommended. Using the same oil type ensures consistent lubrication performance and prevents potential compatibility issues.
Why does diesel generator oil turn black after use?
Diesel engine oil naturally turns dark due to soot and combustion byproducts. This is normal and indicates the oil is carrying contaminants away from engine components.
